Converting a PDF
Convert a PDF on the home screen is the front door to osr-forge's pipeline: point the editor at a module PDF and it prices the run, converts the module with live progress, and lands the result in the review queue — no CLI required.

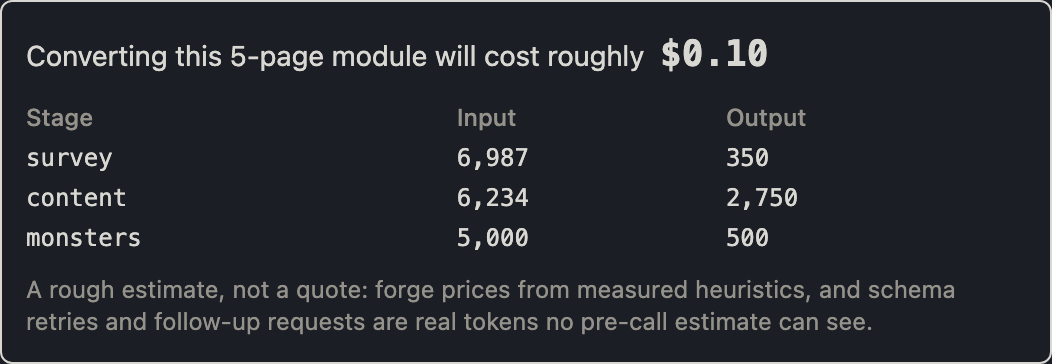

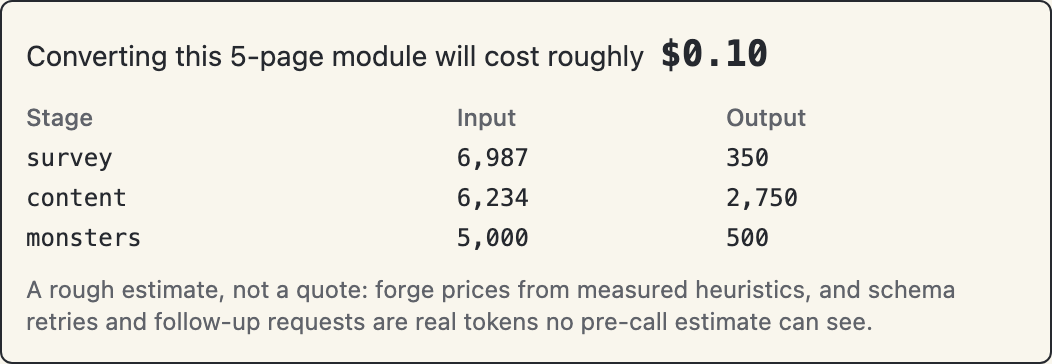

The cost gate
Point the dialog at a PDF; the destination workdir prefills as <pdf-dir>/<pdf-stem>.forge and stays editable. The editor then runs forge's estimate() — which really renders every page into that workdir, because module text is never persisted outside your own project — and shows the page count, per-stage token predictions, and the cost: "converting this 48-page module will cost roughly $X". It is a band, not a quote, and the card says so.
Nothing is spent until you confirm. Not now keeps the rendered workdir; the home screen lists it and the pipeline view resumes it later.
The run
Confirming runs the chain on a worker thread with live per-stage progress. Cancel is cooperative and takes effect at the next stage boundary — the stage in flight always finishes, so the run record never holds a stage the chain abandoned mid-write, and running again picks up exactly where it stopped. A failure shows forge's own message and keeps every completed stage. On success the workdir opens straight into forge-backed review.

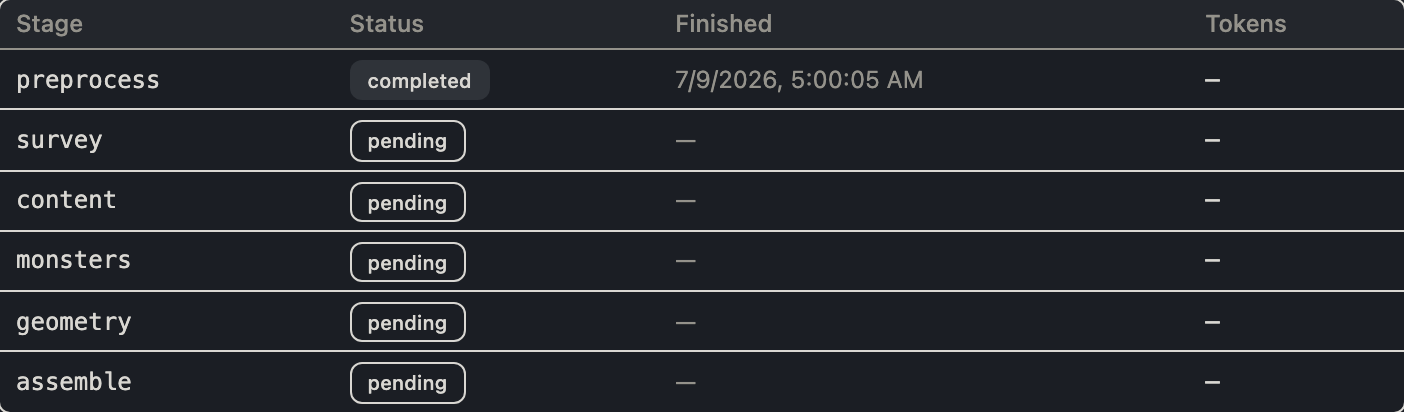

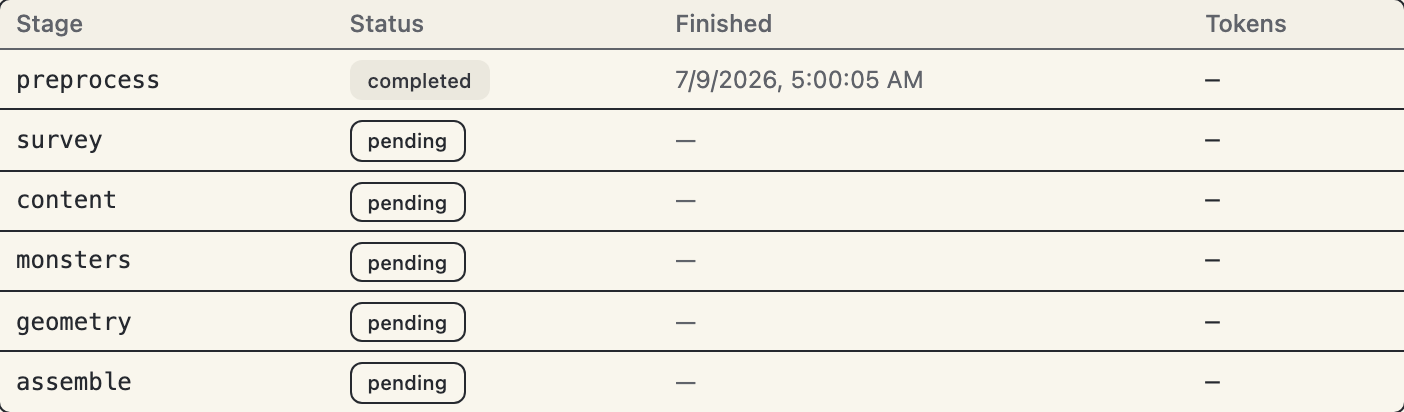

The pipeline view
A workdir whose conversion never completed — declined at the gate, cancelled, or failed — opens into the pipeline view rather than a dead end: the per-stage table, a stage picker defaulting to the first incomplete stage, optional knob=value settings, and regenerate previews once the survey and content caches exist, so you can eyeball the synthesized geometry before paying for the remaining model stages.
Open projects get the same reach from their Pipeline panel: assembly stays the fast synchronous path, and any other stage runs with progress and cancellation, adopting the re-assembled document when it lands. Commits pause while it runs, and your undo history survives, replaying corrections against the new caches.
Provider configuration
Conversion reads the same environment the forge CLI reads:
| Variable | Meaning |
|---|---|
OSRFORGE_FOUNDRY_ENDPOINT |
The Azure AI Foundry endpoint |
OSRFORGE_FOUNDRY_DEPLOYMENT |
The deployment name |
OSRFORGE_FOUNDRY_API_KEY |
Optional. Absent means Entra ID auth through DefaultAzureCredential, which needs the osr-forge[entra] extra |
Provider settings (from the convert dialog or the pipeline view) shows what was detected, where each value came from, and whether a provider can be built at all. You can override any field for the session — those values live in memory until the editor closes.
No credential is ever written to editor config, and no API response ever includes one: the key surfaces only as "set" or "not set", with its source. This is a contract, not a default.
